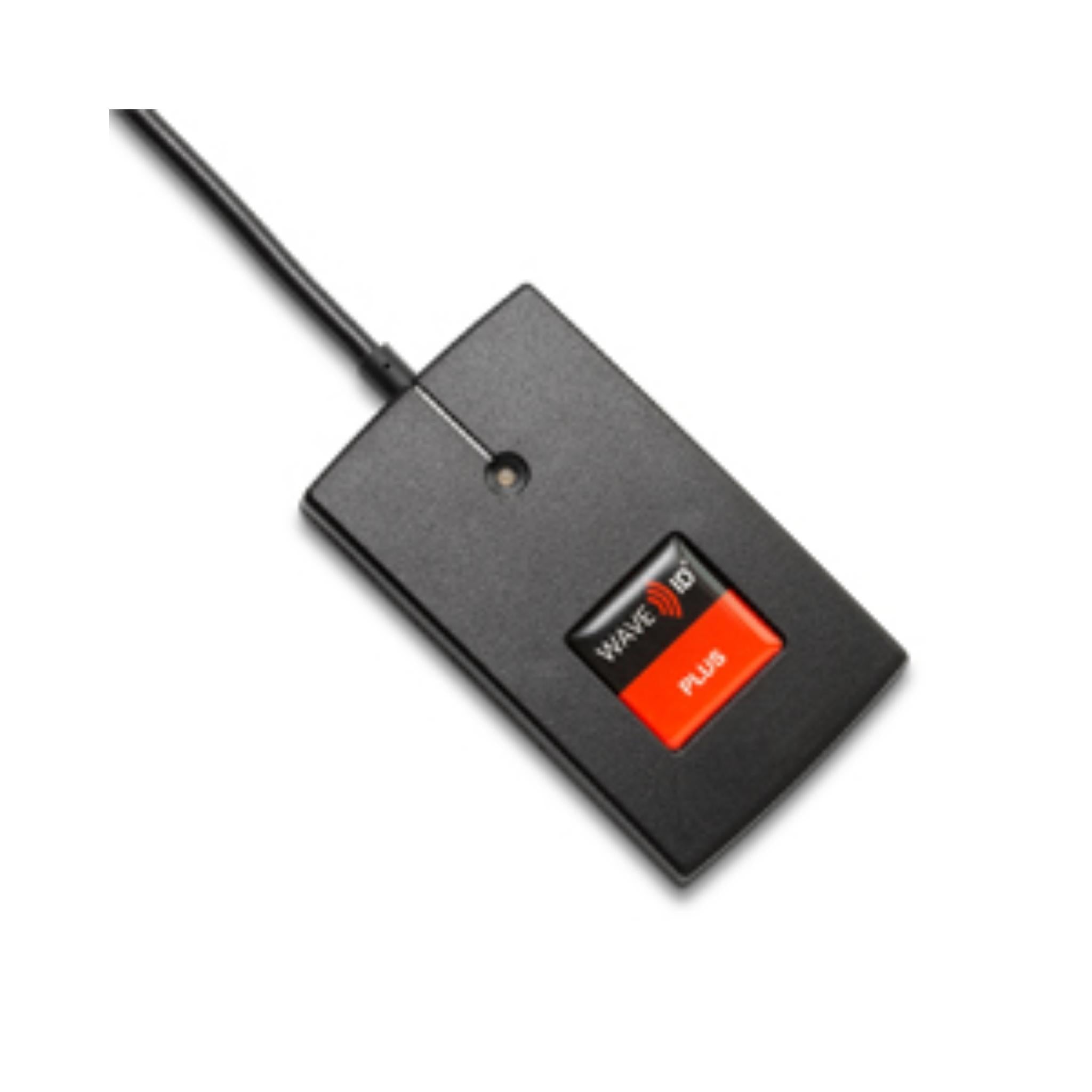

RF IDeas WAVE ID® Plus is a dual-frequency programmable card reader that provides the advantages of reading both proximity and contactless smart cards in one reader. This reader allows users to leverage their employee ID badges, or any 125 kHz or 13.56 MHz tags or labels, for other forms of secure authentication and identification throughout the workplace.
With flash memory and supporting nearly all card types, the WAVE ID Plus allows users to quickly configure the readers output to meet their needs. Highly configurable technology allows the reader the capability of simultaneously handling any two of the available technologies — proximity or contactless. This multi-technology reader delivers flexibility to any customer, integrator, or end-user struggling with different card technologies. It’s ideal for enrollment into third-party software or for single sign-on integrators.
Features:
- Easy Interface and Protocol: USB models connect directly to a USB port and can be configured to send data as keystroking, non-keystroking or serial ASCII. RS-232 models connect to a serial port and send data as ASCII. Ethernet models connect through an RJ45 connection and are sent data as either ASCII or E/IP.
- Compatibility: Compatible with Windows CE®/2000®/XP®/ Vista®/7®, Macintosh®, Solaris™, ThinManager® thin clients, and Linux. (Free configuration software required on Windows® operating system.)
- Improves Accuracy and Productivity: Eliminates errors associated with individual identification.
- Versatile Mounting Options: Featuring an articulated cable, the standard housing reader can easily be mounted on kiosks, monitors, time clocks, and more.
Part Details:
RDR-80581AKU-C16: RFIDEAS, WAVE ID PLUS BLACK 16IN. USB READER
BDG-1326: RFIDEAS, HID PROXCARD II CLAMSHELL CARD, SOLD PER CARD, 1326LMSMV, H10301, FC 183, MOQ 100
BDG-1391: RFIDEAS, MICRO PROX, RFID, HID 1391, 100 PC PACK, SOLD PER EA. CARD
Additional Information:
| Operating Frequency | Both 125 kHz & 13.56 MHz (Dual) |
| Dimensions | 3 3/8” x 2” x 0.6” (8.57cm x 5.08cm x 1.52cm) |
| Cable Length | 6 in, 16 in & 6 ft |
| Indicators | Tri-state LED, dual tone beeper |
| Interface | USB, Serial RS-232, Ethernet |
| Operating Temperature Range | -22° to 150°F (-30° to 65°C) |
| Operating Humidity Range | 5% to 95% relative humidity |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
