Description:

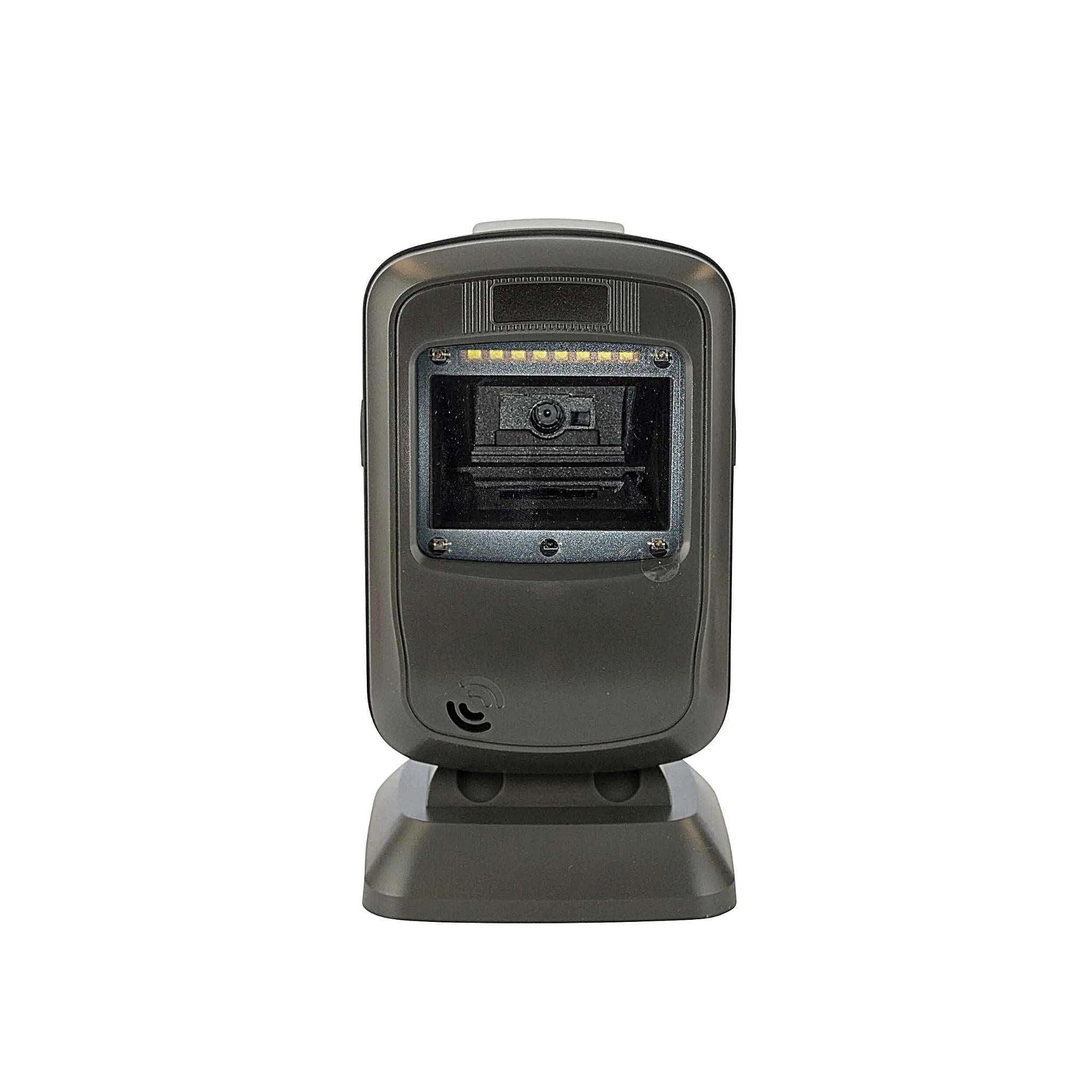

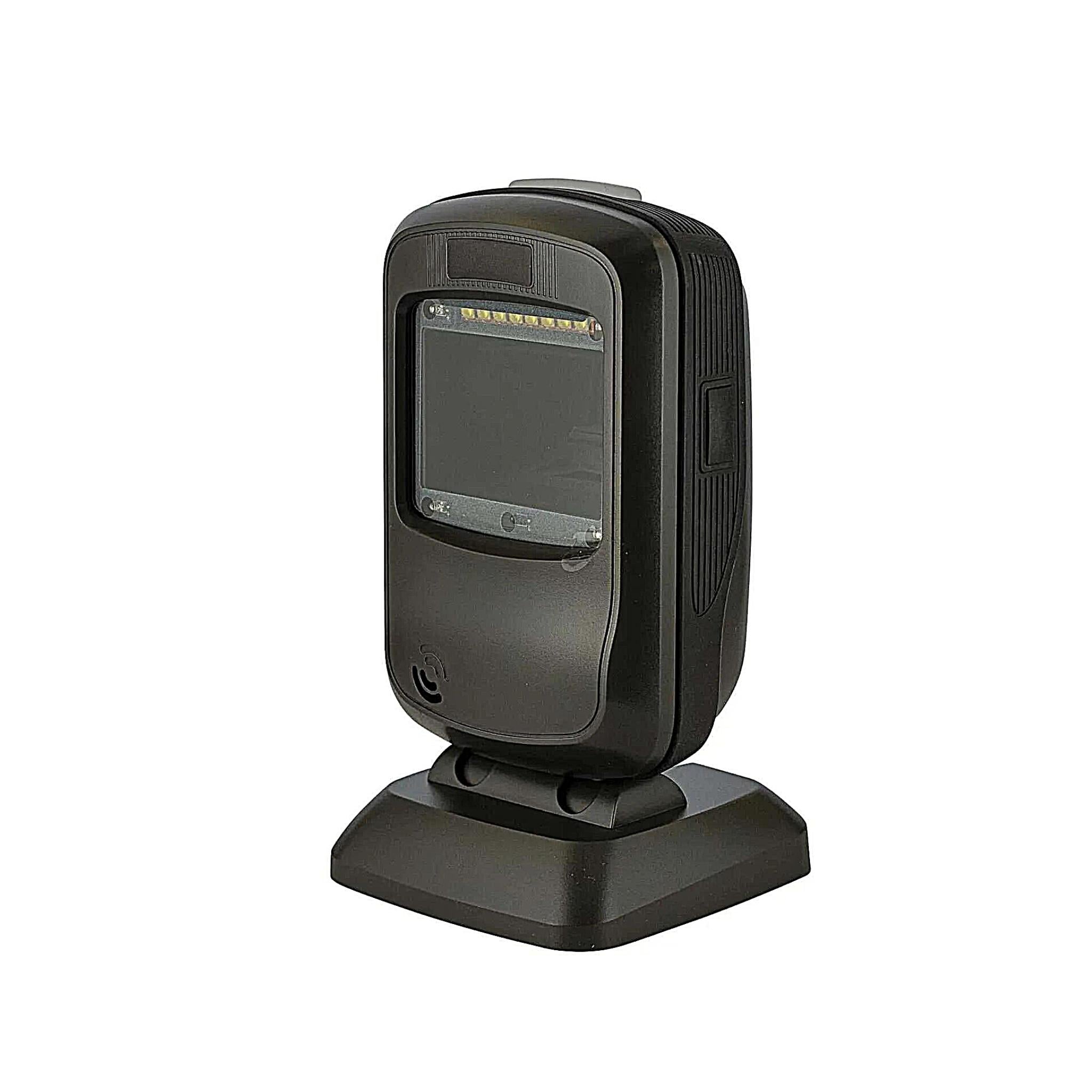

A global provider of complete POS hardware solutions, Star Micronics is proud to provide the durable and powerful desktop BSD-FR4080 barcode scanner. Equipped with a high-power CPU, this scanner is capable of reading a variety of barcodes, from 1D barcodes to high-volume 2D barcodes on a screen covered with protective film.
Features:
- Durable: IP52-rated design and drop-resistant up to 1.2m
- Efficient: Quickly toggles between normal mode and high-motion-tolerance mode
- High Performance: 2.5m/s motion tolerance and large field of view (horizontal 51°, vertical 32°)
Part Details
3795044: BSD-FR4080 Desktop USB 2D Barcode Scanner
Additional Information:
| Image Sensor | 1280×800 CMOS |
| Illumination | White LED |
| Resolution* | ≥3mil |
| Typical Depth of Field* | EAN-13: 10-210mm (13mil) |
| Scan Angle** | Pitch: ±50°, Roll: 360°, Skew: ±45° |
| Field of View | Horizontal 51°, Vertical 32° |
| Interfaces | RS-232, USB |
| Dimensions | 83(W)×81(D)×148(H)mm |
| Notification | Beep, LED indicator |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| Cable | USB: Used to connect the scanner to a host device. |
| Power Adapter | DC5V power adapter to provide power for the scanner with RS-232 cable |
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
