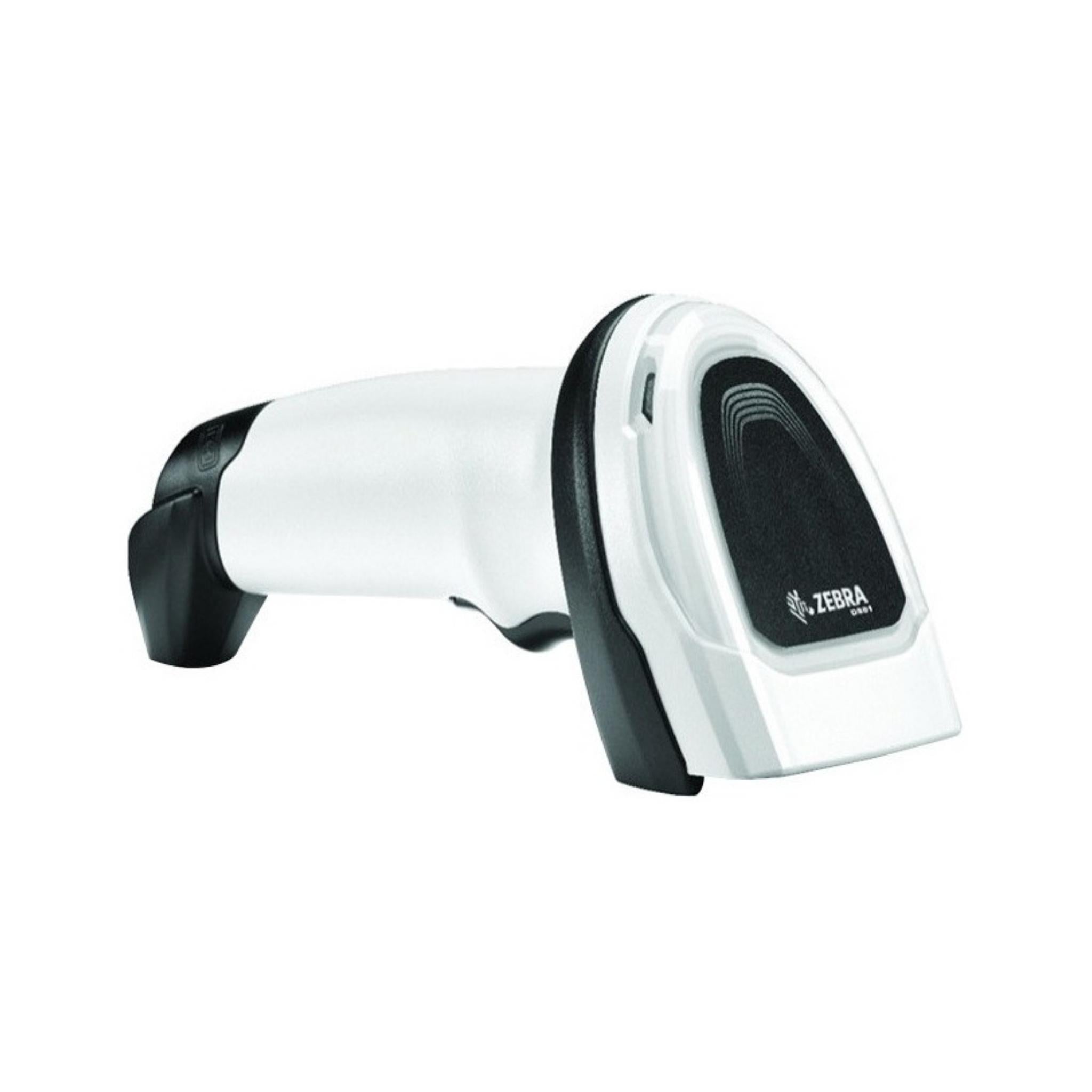

Zebra DS8100 Series Corded 1D/2D Handheld Imagers
The DS8100 Series rises above conventional imagers delivering unprecedented scanning performance on 1D and 2D barcodes, innovative productivity-enhancing tools, including swappable power sources, a PowerPrecision+ battery, or PowerCap capacitor — plus unrivaled manageability tools to keep your scanners up, running, and in the hands of your cashiers. Keep checkout lines moving and cashiers free to deliver a more personal checkout experience with the DS8100 Series because when it comes to the checkout experience, only the best will do.
Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra’s exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes — including dense, poorly printed, crinkled, faded, distorted, dirty, or damaged, as well as electronic barcodes on dimly lit displays
Part Details:

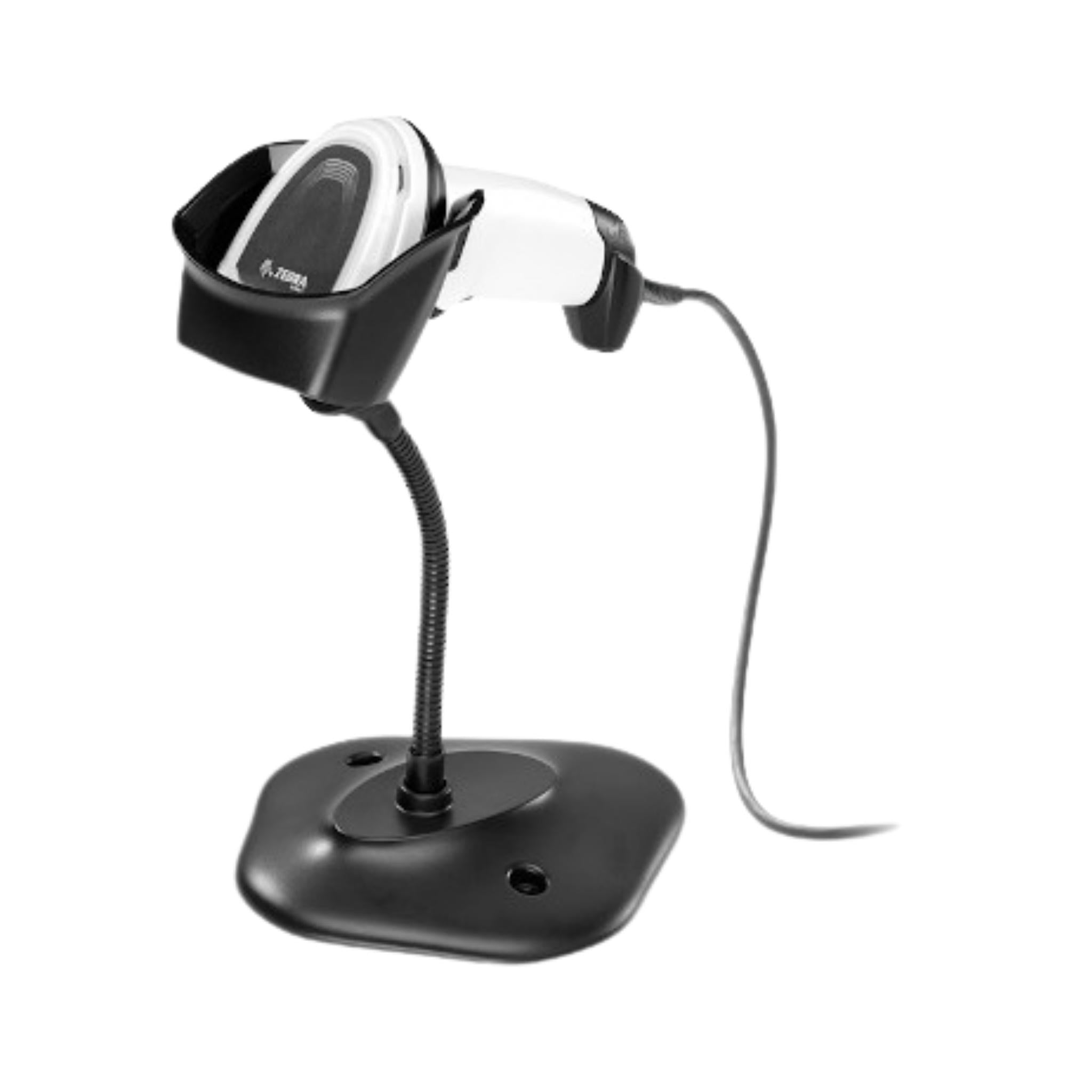

DS8108-SR6U2100SGW: Zebra Evm, Ds8108-Sr (With Stand) USB Kit, 1d/2d Imager, Kit Includes: Ds8108-Sr00006zzww Scanner, Cba-U21-S07zbr Shielded Usb Cable, 20-71043-04r Stand, White
Additional Details:
| Dimensions | 6.6 in. H x 2.6 in. W x 4.2 in. D
16.8 cm. H x 6.6 cm. W x 10.7 cm. D
Standard Cradle:
2.8 in. H x 3.3 in. W x 8.3 in. D
7.1 cm. H x 8.4 cm. W x 21.1 cm. D
Presentation Cradle:
2.9 in. H x 3.7 in. W x 4.8 in. D
7.4 cm. H x 9.4 cm. W x 12.2 cm. D
|
| Weight | Corded DS8108: 5.4 oz./154 g
Cordless DS8178: 8.3 oz./235.3 g
Desk/Wall Cradle: 7.1 oz./202 g
Presentation Cradle: 6.5 oz./182 g |
| Input Voltage Range | DS8108: 4.5 to 5.5VDC
DS8178 Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC |
| Current | Corded DS8108 Operating Current at Nominal Voltage (5.0V): 450 mA
Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| FIPS Security Certification | Certified Compliant with FIPS 140-2 |
| User Indicators | Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge |
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
