All-in-One Box

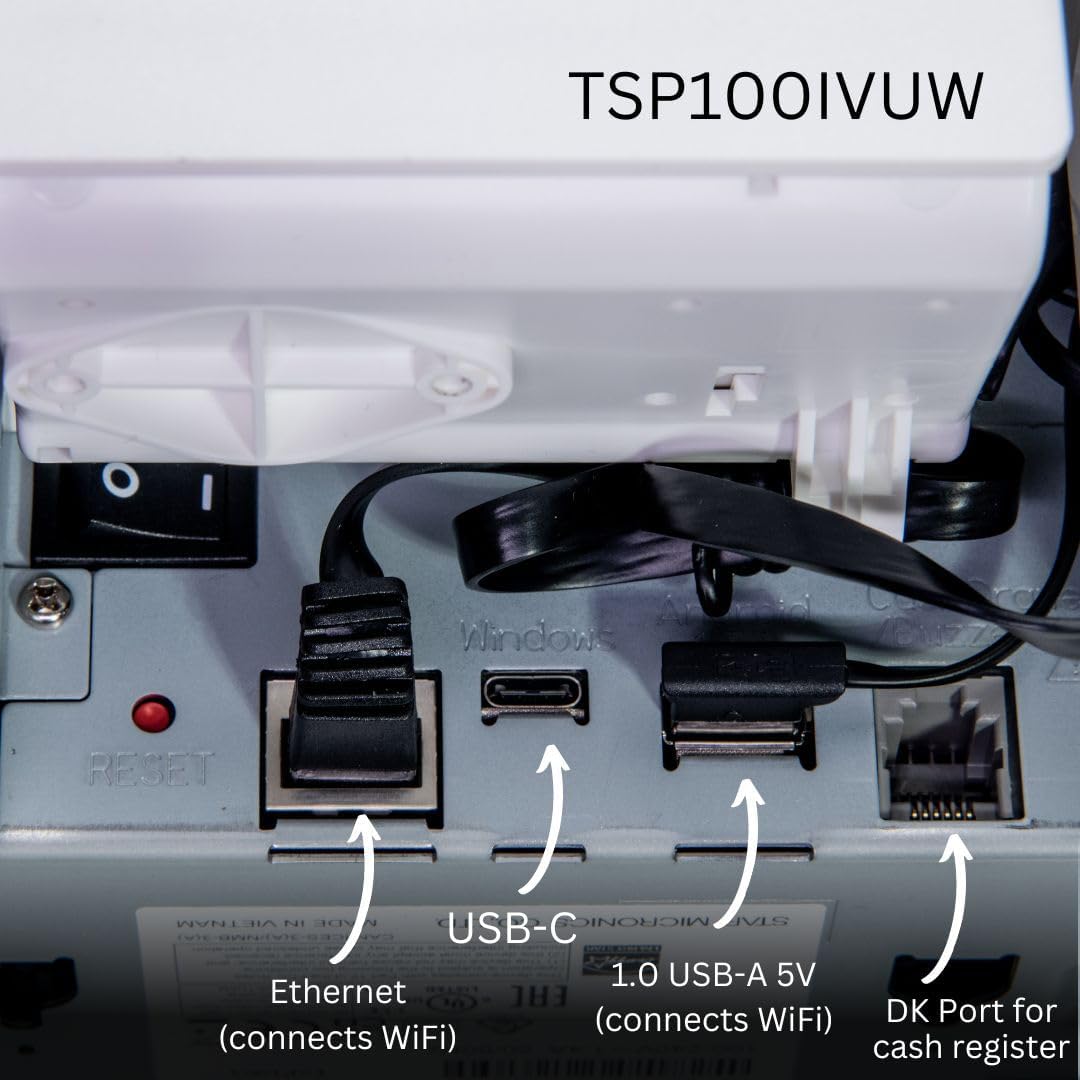

The Star TSP143IV Barcode Label Printer is an all-inclusive solution with WLAN, USB-C and Ethernet connectivity, CloudPRNT support. It offers high-speed printing at 250mm/s.
With an auto-cutter, USB Type-C Connector, and unique Print Flat technology, this printer is Cloud Ready for Star Micronics Cloud Services. It includes USB and power cords, receipt design software, and drivers for easy setup and immediate use. Featuring 203 dpi resolution, 3.15" paper width, and 25 receipts-per-minute printing speed even with graphics, it enables receipt preview, coupon and logo additions, and enhanced barcode printing. It provides the same reliability and quality as its predecessor with added feature of dual-band wireless connectivity with its modern, compact design occupies 20% less space than the previous model, providing flexibility with network connections, support for various applications, and CloudPRNT technology for cloud-based applications. With an internal power supply and easy paper loading, it's an ideal choice for mPOS or POS bundles.
Part Details:

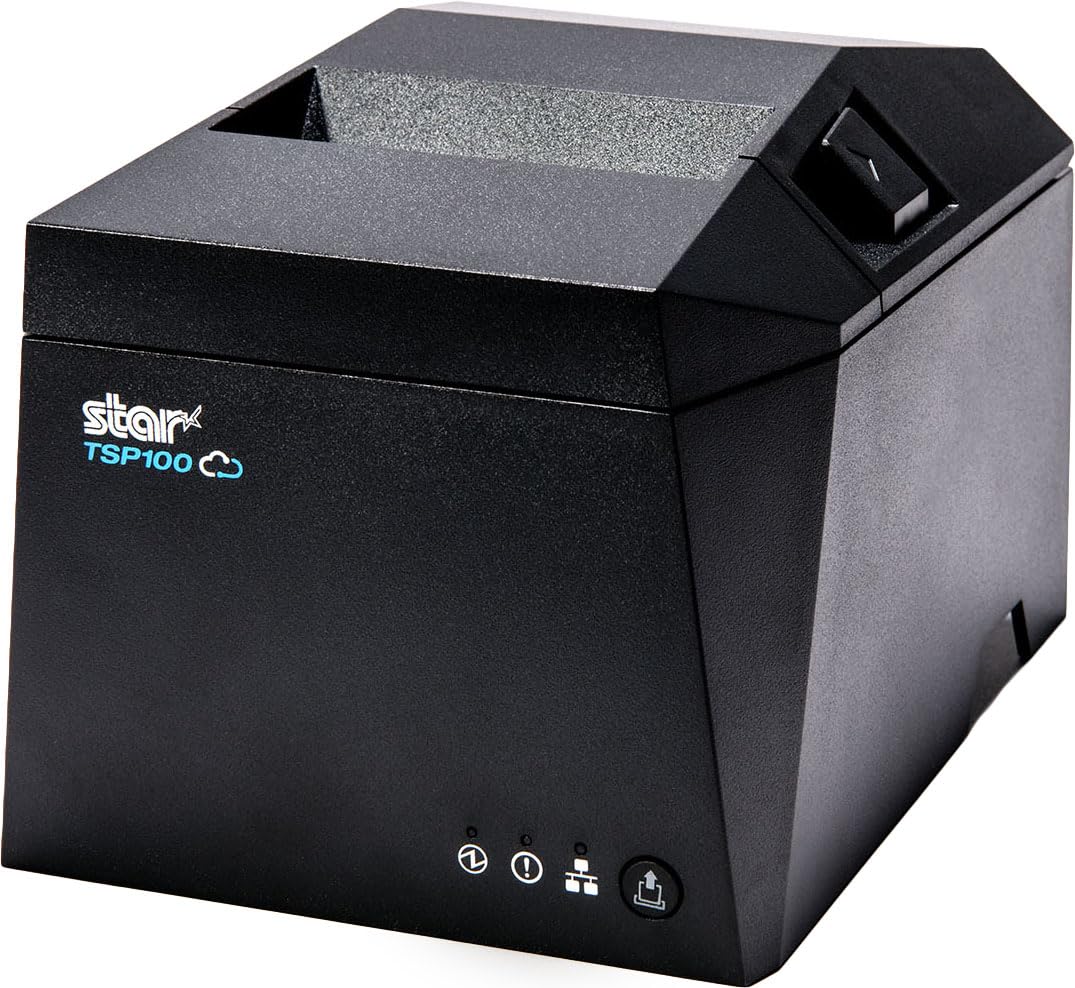

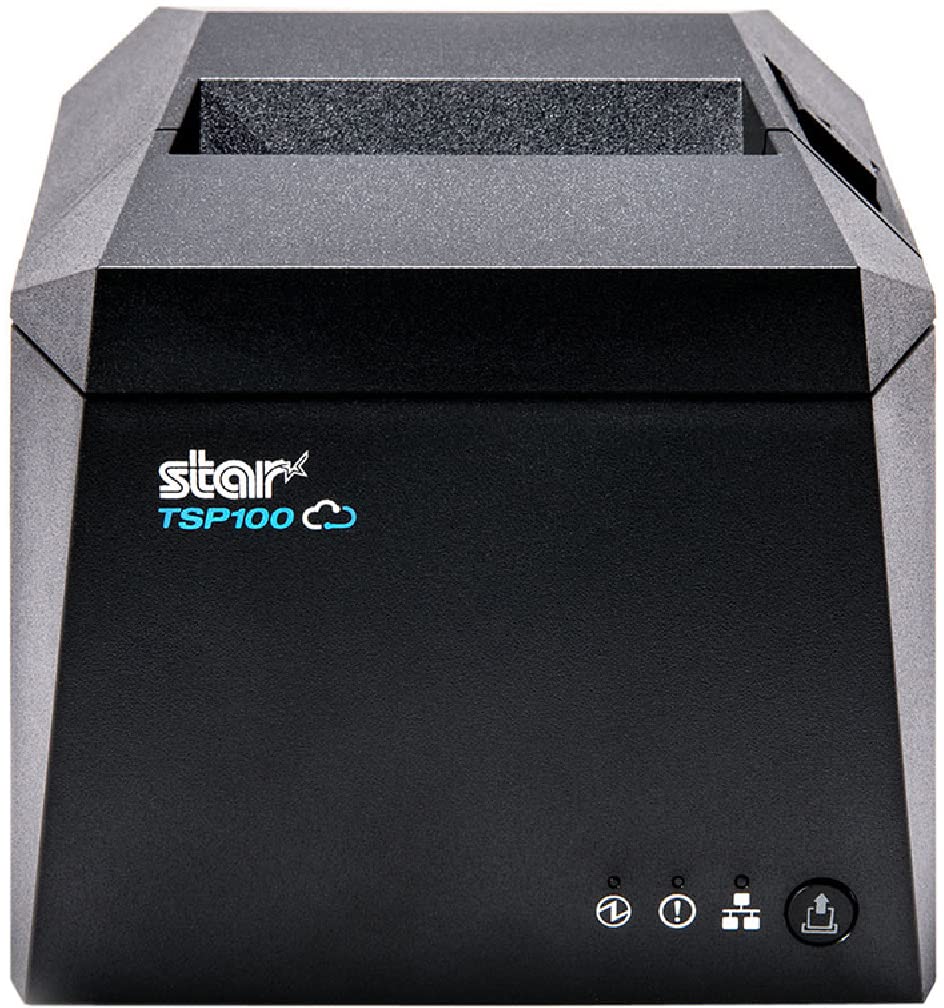

37951430: Star Micronics TSP143IVUW WLAN, USB-C/Ethernet (LAN) Thermal Receipt Printer with CloudPRNT, Cutter, and Internal Power Supply - Gray

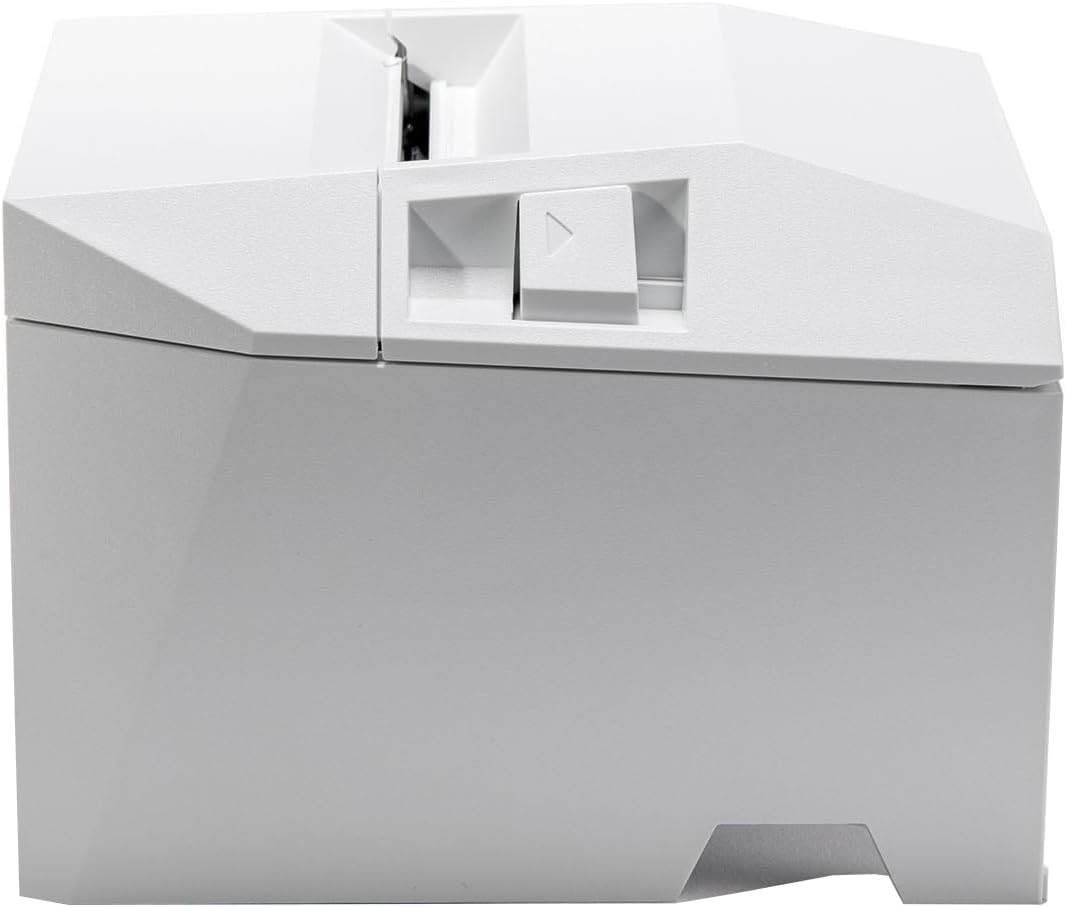

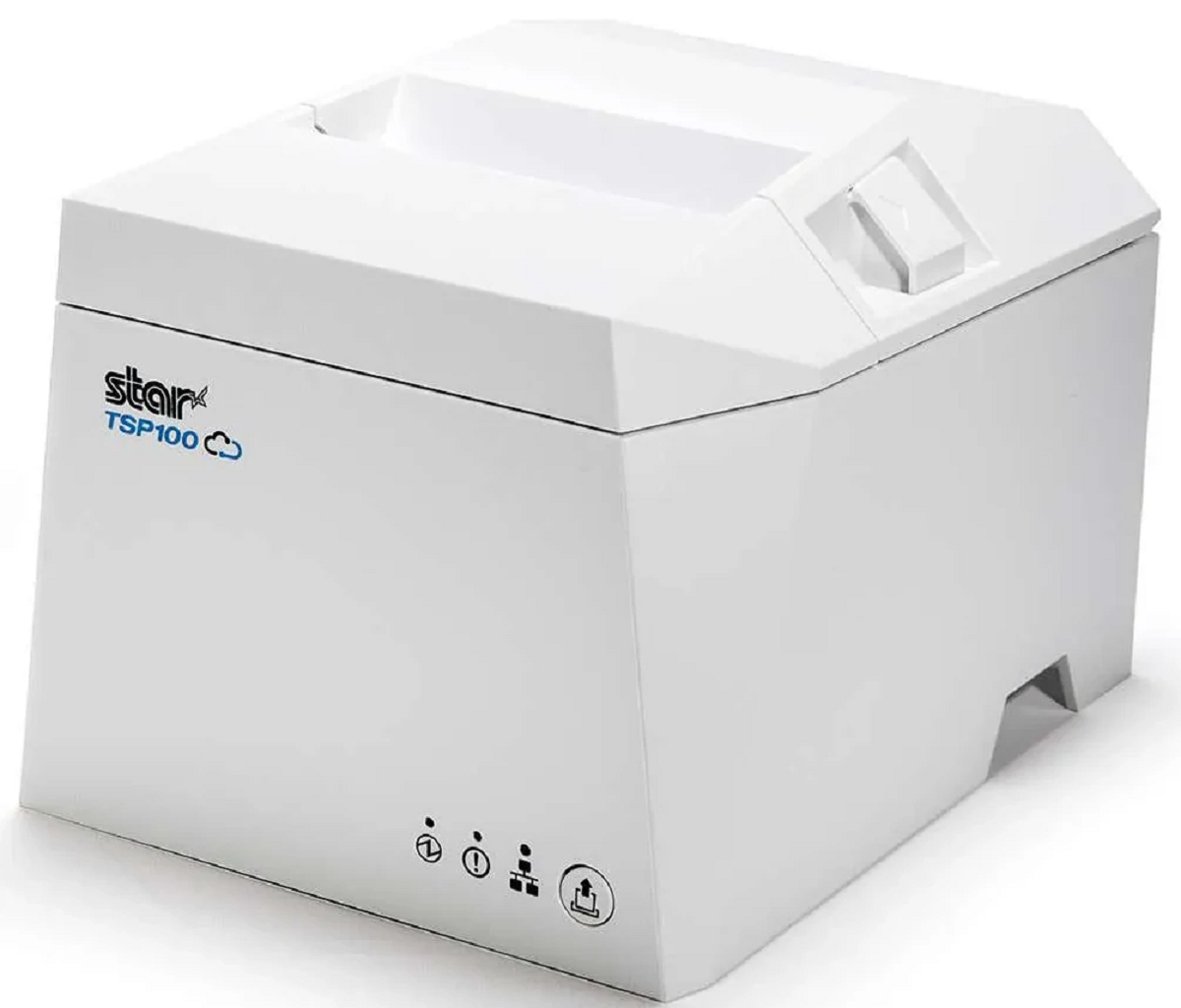

37951440: Star Micronics TSP143IVUW WLAN, USB-C/Ethernet (LAN) Thermal Receipt Printer with CloudPRNT, Cutter, and Internal Power Supply - White
Additional Information:
| Brand | Star Micronics |
| Model | TSP143IVUW |
| Part Numbers | 37951430 37951440 |
| Compatability | - iOS
- Android
- Windows
- Mobile Ordering Companies (Skip the Dishes, UberEats, DoorDash)
- Square Stand
- iPad (no Square Stand)
- iPhone
|
| Printer Method | Direct Line Thermal |
| Print Speed | 43 RPM (Receipts Per Minute)
|
| Print Resolution | 203 dpi (8 dots per mm)
|
| Font Size | 12 x 24 |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
Paper Specifications
| Width: 80mm Standard, 58mm with Paper Guide
Thickness: 0.053 ~ 0.085 mm
Roll Diameter: Up to 83mm

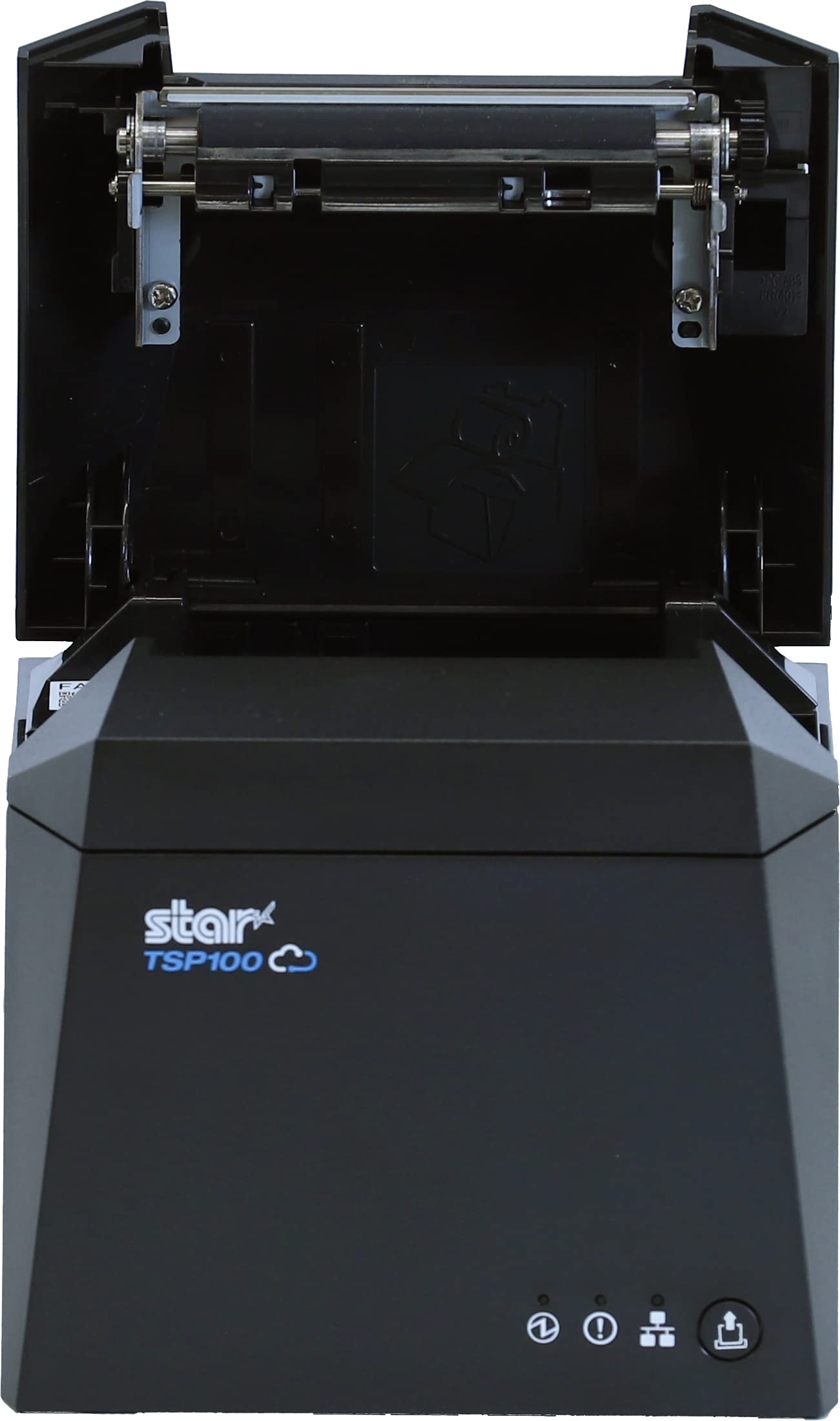

Easy Load: "Drop-In & Print"
Paper Out Sensor: Standard
Paper Low Sensor: N/A
Maximum Print Width: 80mm paper = 72mm, 58mm paper = 50.8mm |
| Cover Open Sensor | Yes |
| Dimensions (WxHxD) | 142 x 132 x 204mm |
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
