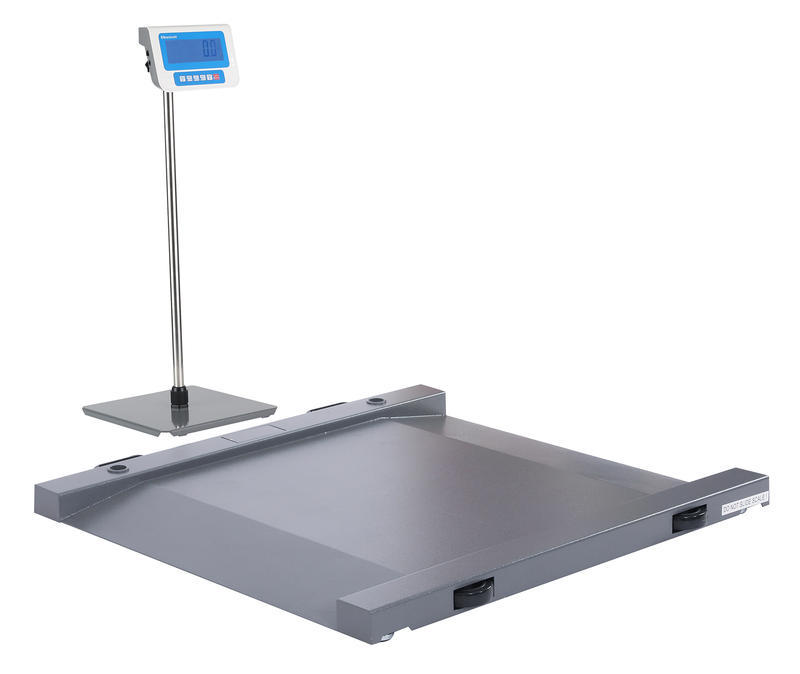

DS1000-LCD Floor Scale
DS1000-LCD Drum Weigher Scale is ideal for any busy shipping area where goods are constantly being
moved around by pallet jacks or for monitoring drum weights.
This low profile deck design provides a gradual 9% entry and exit ramp making it very easy to roll drums on
and off the scale .
Comes stranded with a simple to use pre-calibrated indicator with a large 1.5" / 38 mm LCD back-lit
display making it ideal for use in any low lit corner of an warehouse.

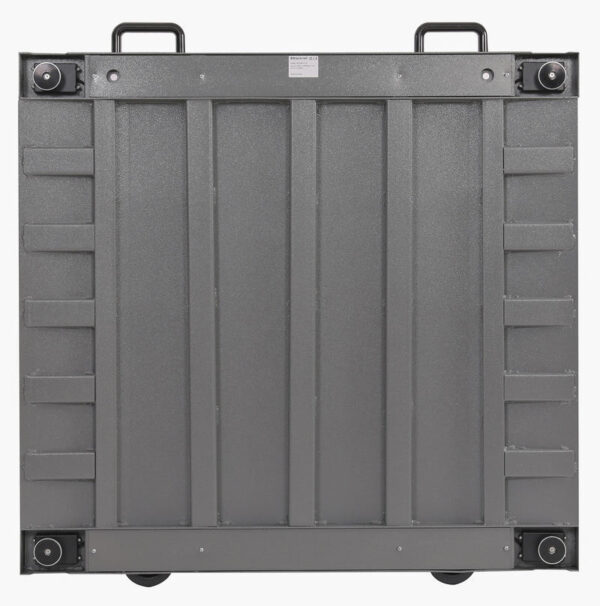

Construction: Powder coated rugged smooth steel deck
structure and built-in ramps, fitted with
two handles and wheels for relocating the

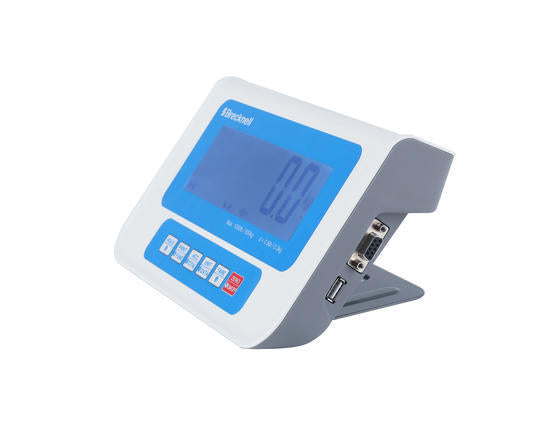

scale. Robust ABS plastic indicator with
bench or pole brackets for mounting.
Annunciators: -0-, motion, gross, net, tare, hold, pcs, %, HI/OK/LOW, battery, accumulation
Print Format: Configurable
Communication: One USB (VCP) and one RS-232
bi-directional full duplex port. Optional COM cables.
Load Cells: 4-planner beam load cells connect to the
ABS junction box with 10' / 3 m interface cable
Ramp: Designed with built-in 9 degree gradual angle to
make entry and exit safe and easy
Part Details
DS1000-LCD : Brecknell Avery DS1000-LCD Drum Floor Scale , 1000 lb x 0.5 lb
Additional Information:
| Capacity x readability | 1000 lb x 0.5 lb / 500 kg x 0.2 kg |
| Accuracy | Within 0.1% |
| Weighing units | lb, kg, pcs, % |
| Display | Six large, easy-to-read 1.5" / 38 mm
high digits, large seven segment LCD
with white backlight
|
| Operator Keys | On/Off/Zero, Tare, Unit, Print, Hold,
Accumulate/Total |
| Indicator Mounting | Can be desk mounted or pole
mounted either vertically or horizontally |
| Packaging Dimension (L x W x H):(inches) | 47.6" x 47.2" x 8.0" / 1210 mm x 1200 mm x 205 mm |
| Certifications | FCC compliant, Prop 65, ETL power
adapter, UKCA, CE, RoHS 3, WEEE |
| Operating temperature range | 14º F to 104º F / -10º C to 104º C |
| Power | 9V 600mA universal power supply with
USA/UK/EU adapters (included) or six AA
batteries (not included) |
| Packaging Contents: | DS1000-LCD platform, indicator,
power supply with USA/UK/EU plugs and indicator
desk and pole mounting brackets
|
*Optional Stand NOT INCLUDED
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
