Description:

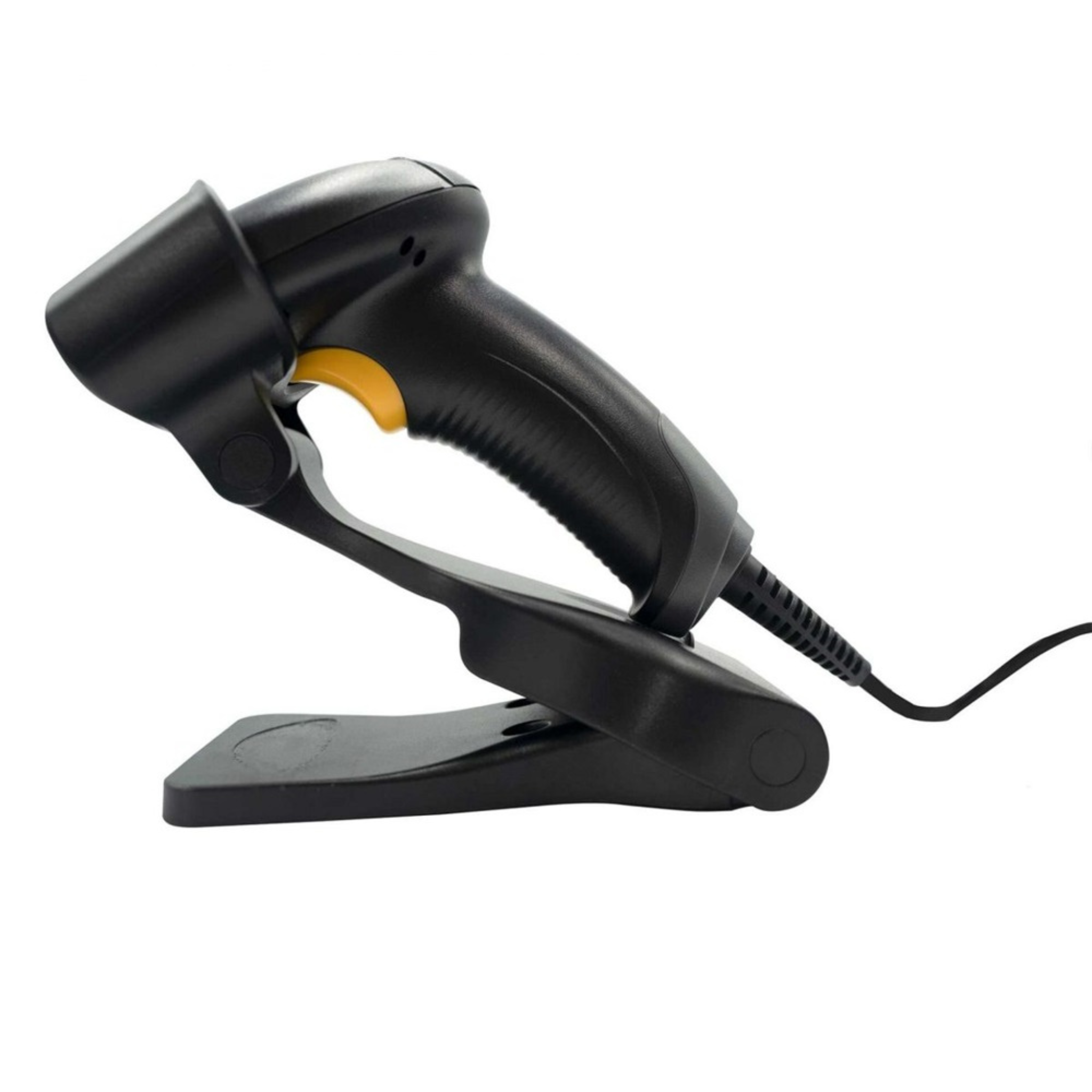

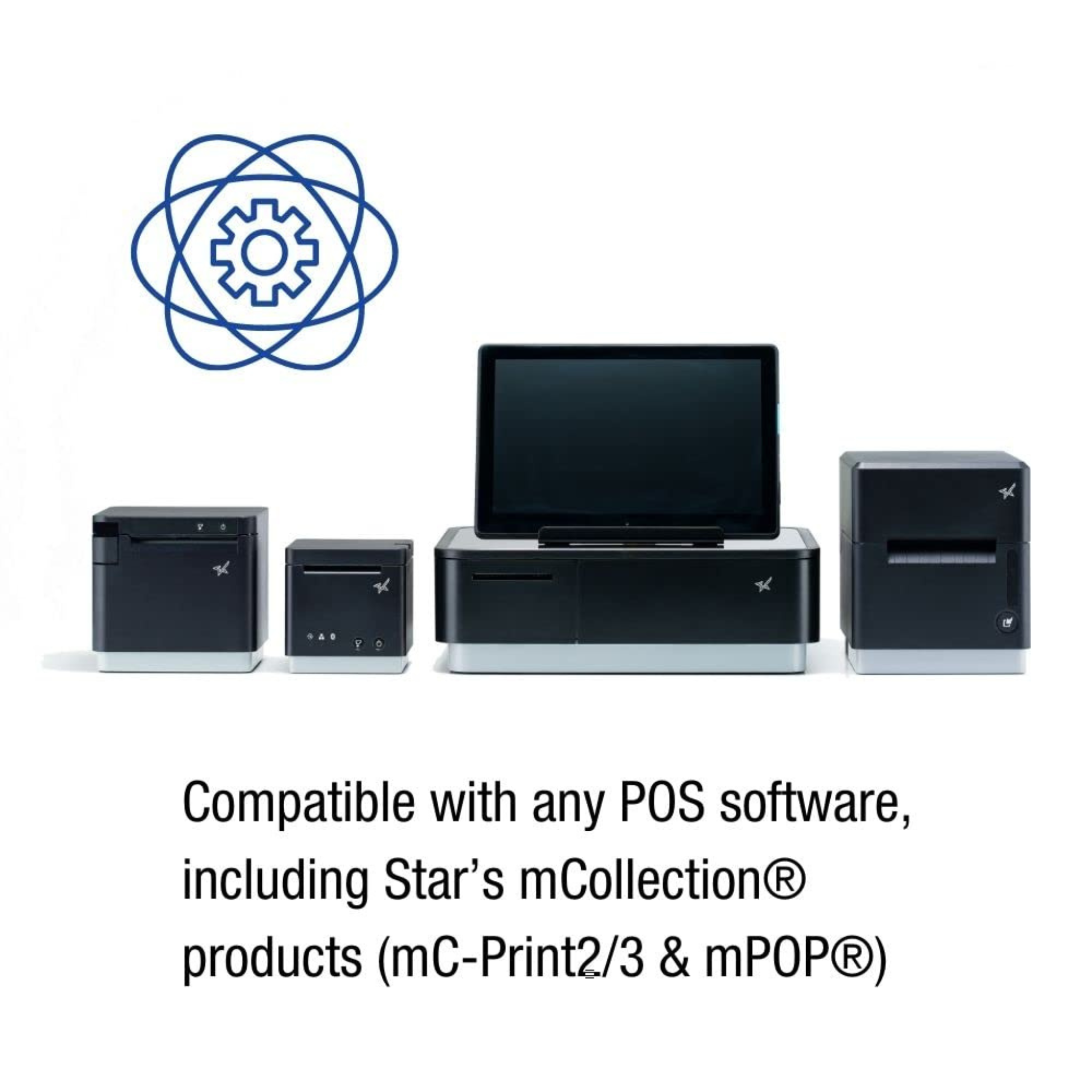

The Star Micronics BSH-20U Handheld Barcode Scanner stands out as a cost-effective, durable, and high-performance device. With an IP52-rated design in sleek black, this scanner ensures reliability even in challenging conditions. Its advanced high-power CPU effortlessly reads both 1D and 2D barcodes, including high-density and distorted codes across diverse surfaces, including screens. Compatible with mC-Print and mPOP®, it offers versatility with its USB cable and included stand, providing convenience for various scanning needs. This scanner brings the precision of a 2D imager at the cost of a 1D scanner, making it a top choice for efficient and accurate scanning tasks
Features:
- High Performance: Powerful CPU captures high-density, high-volume, and distorted barcodes on various surfaces, including paper or screens

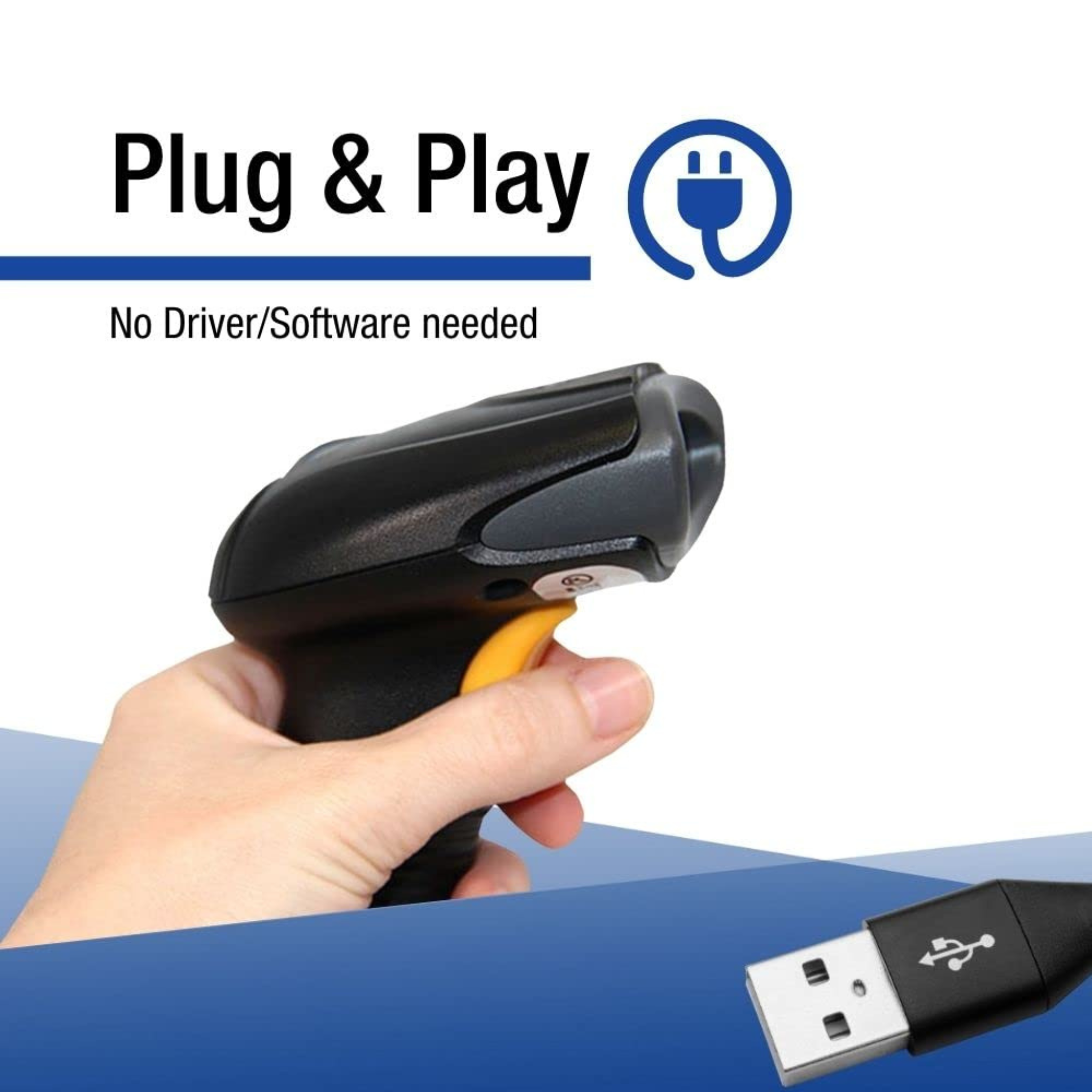

- Easy to Use: Plug-and-play functionality compatible with iOS, Android, and Windows devices, ensuring seamless integration
- Cost-Efficient: Equipped with 2D scanning capabilities at the price point of a 1D scanner, offering enhanced value
- Durable Design: IP42-rated and drop-resistant up to 1.2m, ensuring reliability in demanding environments
- Five Scanning Modes:
Level Mode: Trigger-activated decode sessions
Sense Mode: Automatically activates decode sessions upon detecting a presented barcode
Continuous Mode: Initiates successive decode sessions automatically
Pulse Mode: Trigger-pulled scanning until barcode decoding or session timeout
Batch Mode: Trigger-pulled scanning until the trigger is released
Part Details
37950920 : BSH-20U BLK Wired USB 1D/2D Barcode Scanner
Old Part Number/Model: 37950450

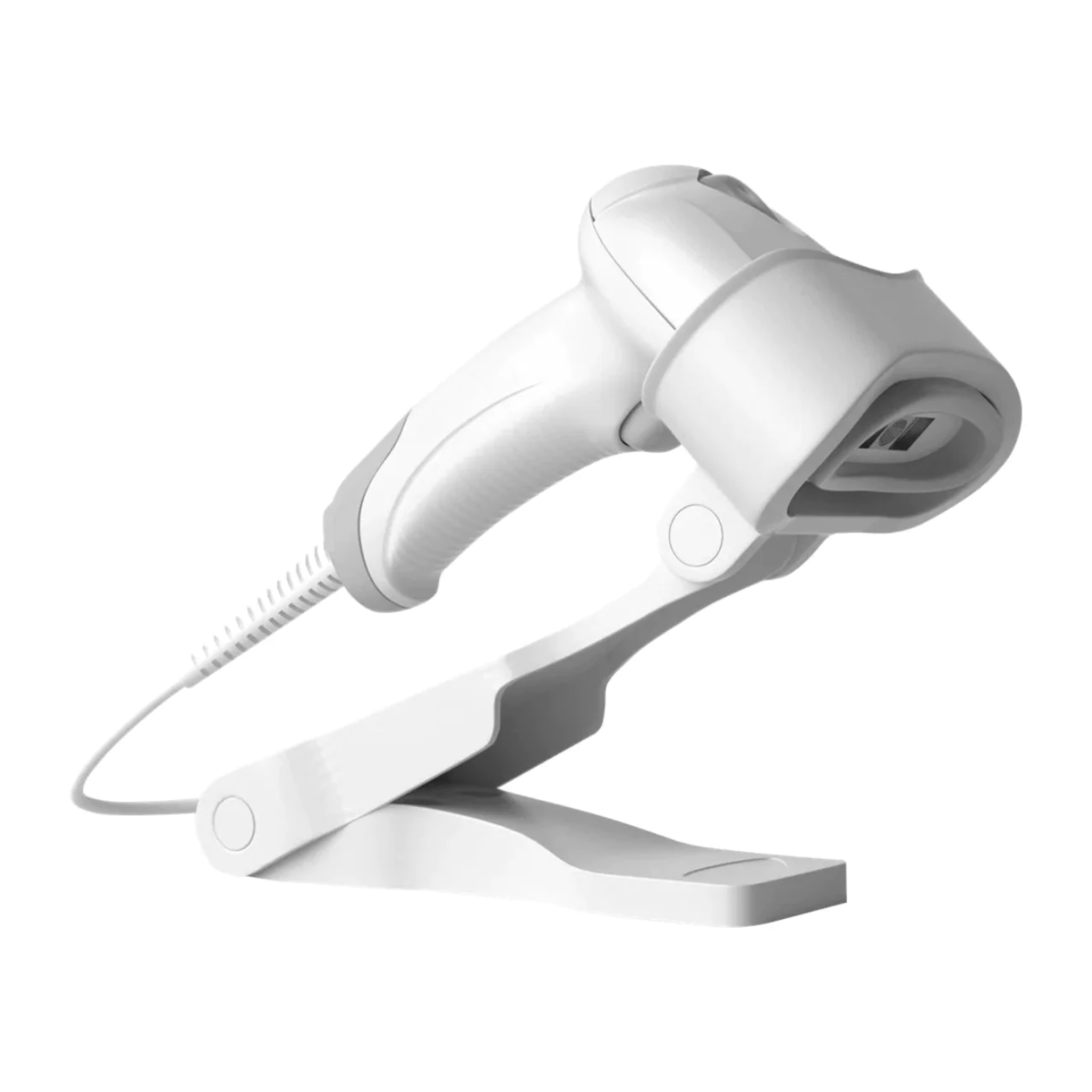

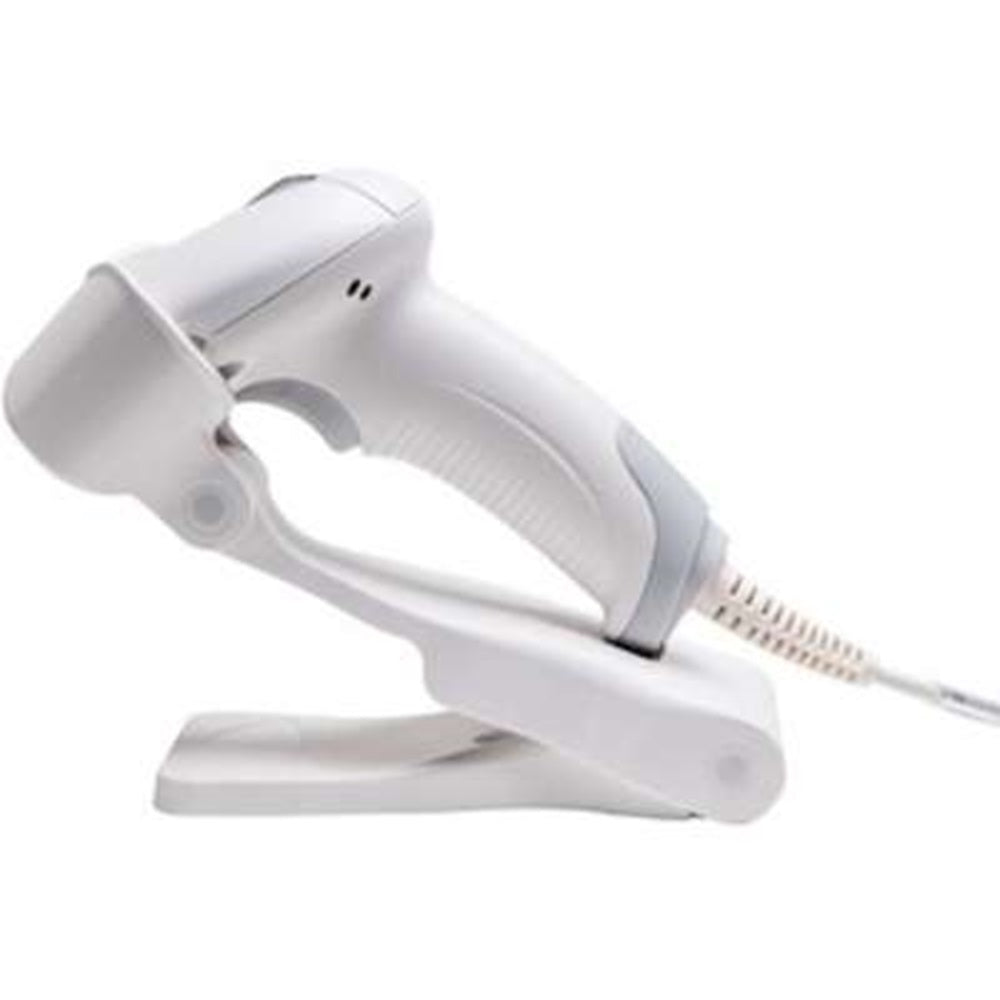

37950930 : BSH-20U WHT Wired USB 1D/2D Barcode Scanner
Old Part Number/Model: 37950530
Additional Information:
| Image Sensor | 640 x 480 CMOS |
| Illumination | White LED |
| Resolution* | ≥3mil |
| Typical Depth of Field* | EAN-13: 10-210mm (13mil) |
| Scan Angle** | Pitch: ±50°, Roll: 360°, Skew: ±45° |
| Field of View | Horizontal: 45°, Vertical 34° |
| Interfaces | USB |
| Dimensions | 83(W)×81(D)×148(H)mm |
| Notification | Beep, LED indicator |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Sealing | IP42 |
| Available Colors | Black, White |
| Scanning Modes | Level, Sense, Continuous, Pulse, Batch |
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
