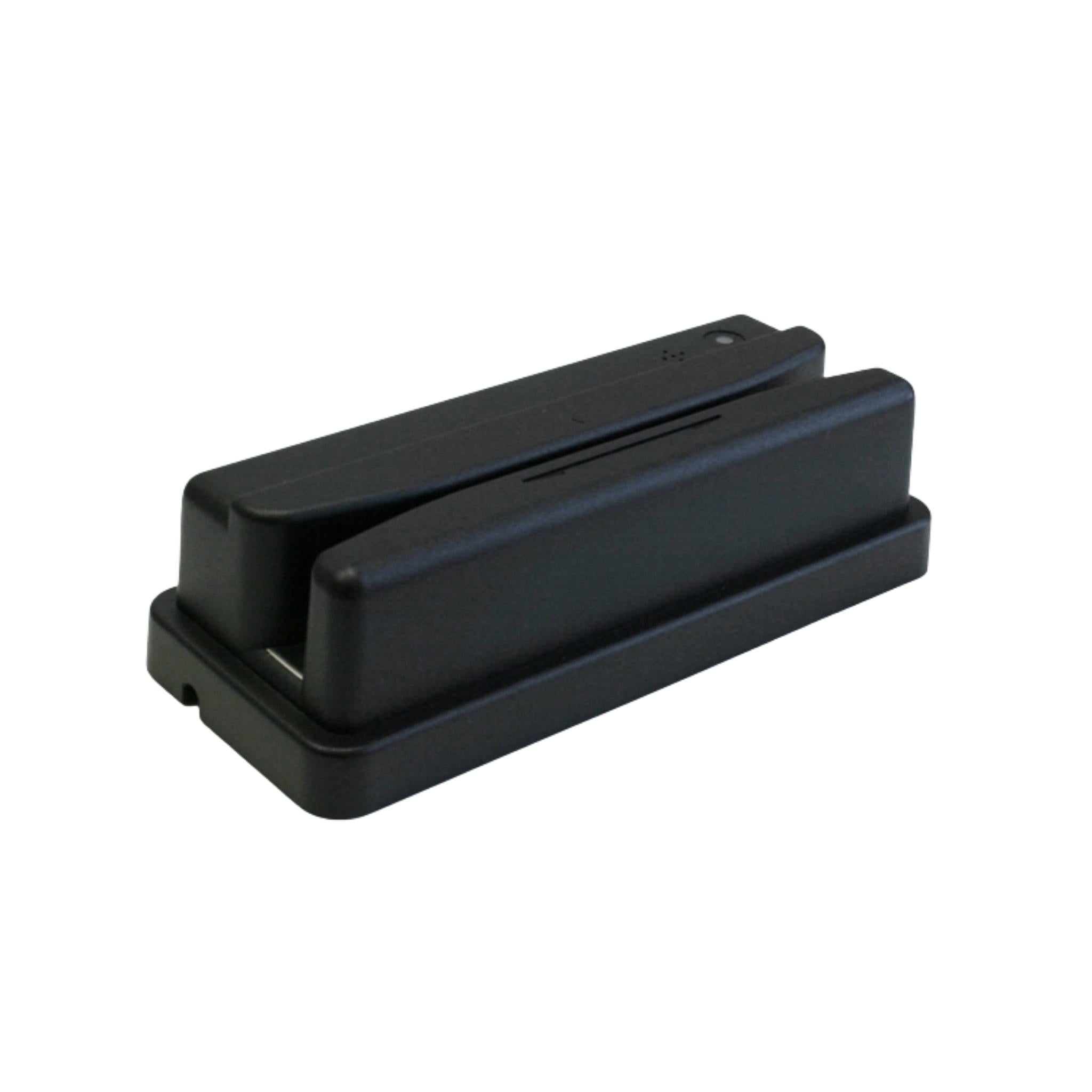

The MS146 barcode slot reader is designed for time control, security access, or attendance control applications using forms, scanning cards or badges. An ideal economic device for either desktop or multidirectional side-mounted applications on the wall, the MS146 is available on multiple interfaces. It has a wide slot and features perfect read rates on high-density labels with a resolution of 0.15mm. The MS146’s sealed optical system has an IP54 rating, allowing it to read a label in the harshest industrial environment without degrading its performance.
Features:
- Sealed optical system with IP54 rating
- Wide barcode slot with flexible reading angle and high resolution
- Multi-directional for flexibility of installation
- Available with multiple interfaces
- Provides desktop or side-mounted application
- Suitable for cards with different dimensions and printing qualities
- Available with TTL, keyboard wedge, RS232 and USB interfaces
- Advanced data editing
- 50mm to 700mm/sec scan rate
- 6 mils minimum resolution
Part Details:
MS146 Slot Scanner, Visible Light, USB, Mounting Bracket
Additional Information:
| Dimensions | 5 in (L) x 2 in (W) x 1.3 in (H) |
| Light Source | Infrared: 930 nm LED, Visible light: 660 nm LED |
| Sensor | Photo Diode |
| Resolution | 6 mils (0.15mm) min |
| Print Contrast | 0.6 minimum |
| Kit | Yes |
| Kit Components | Interface Cable, Stand, Scanner |
| Beep Sound Volume | >70dB |
