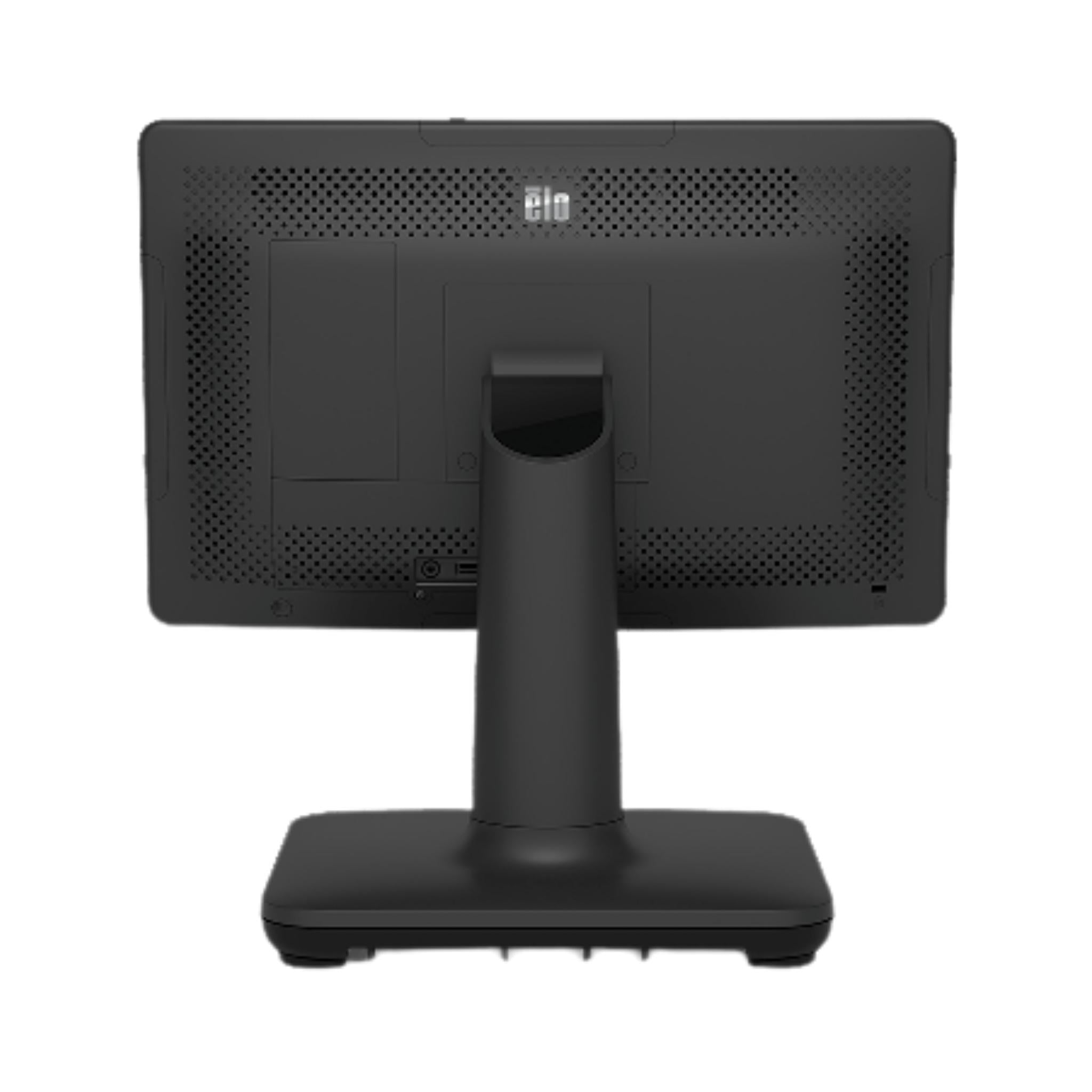

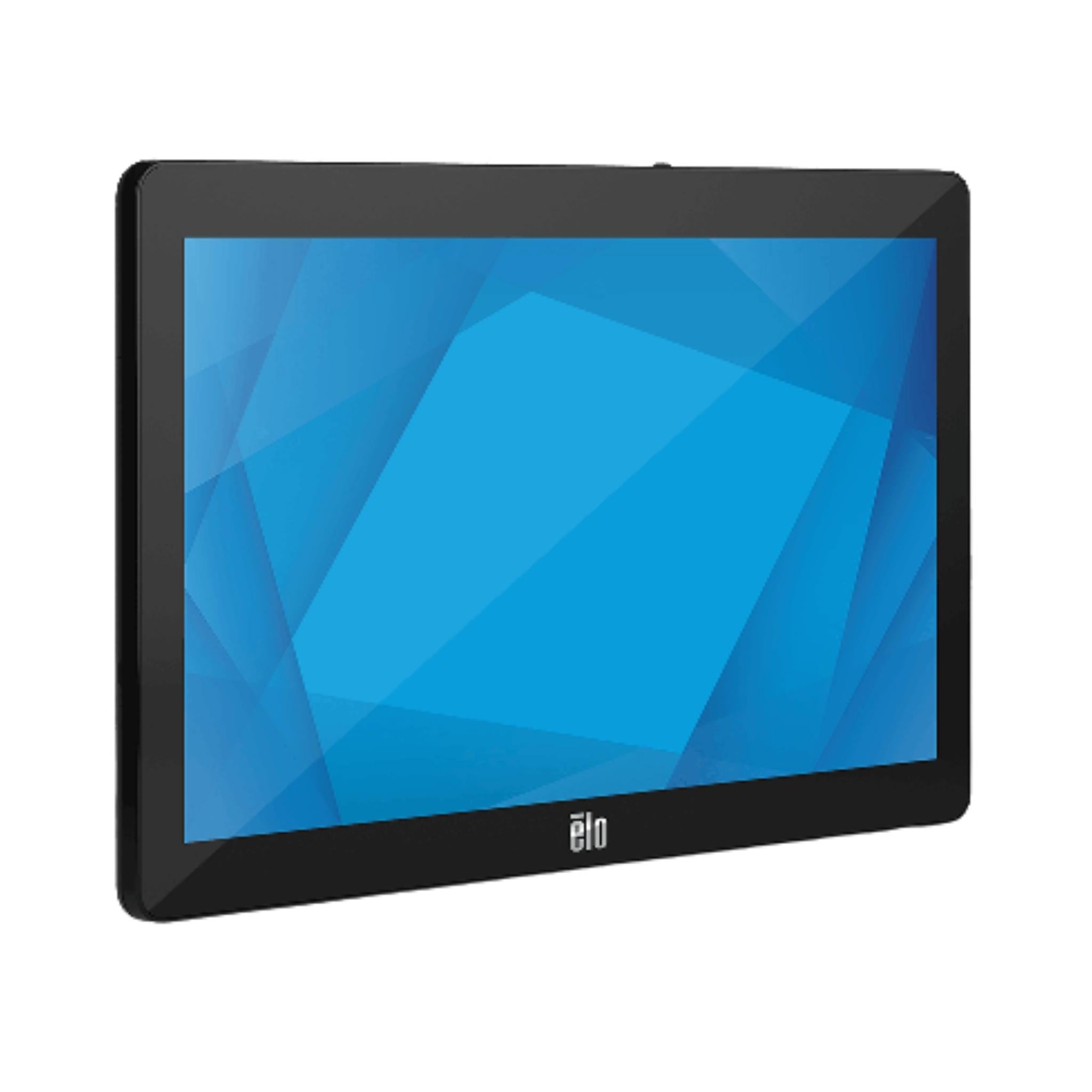

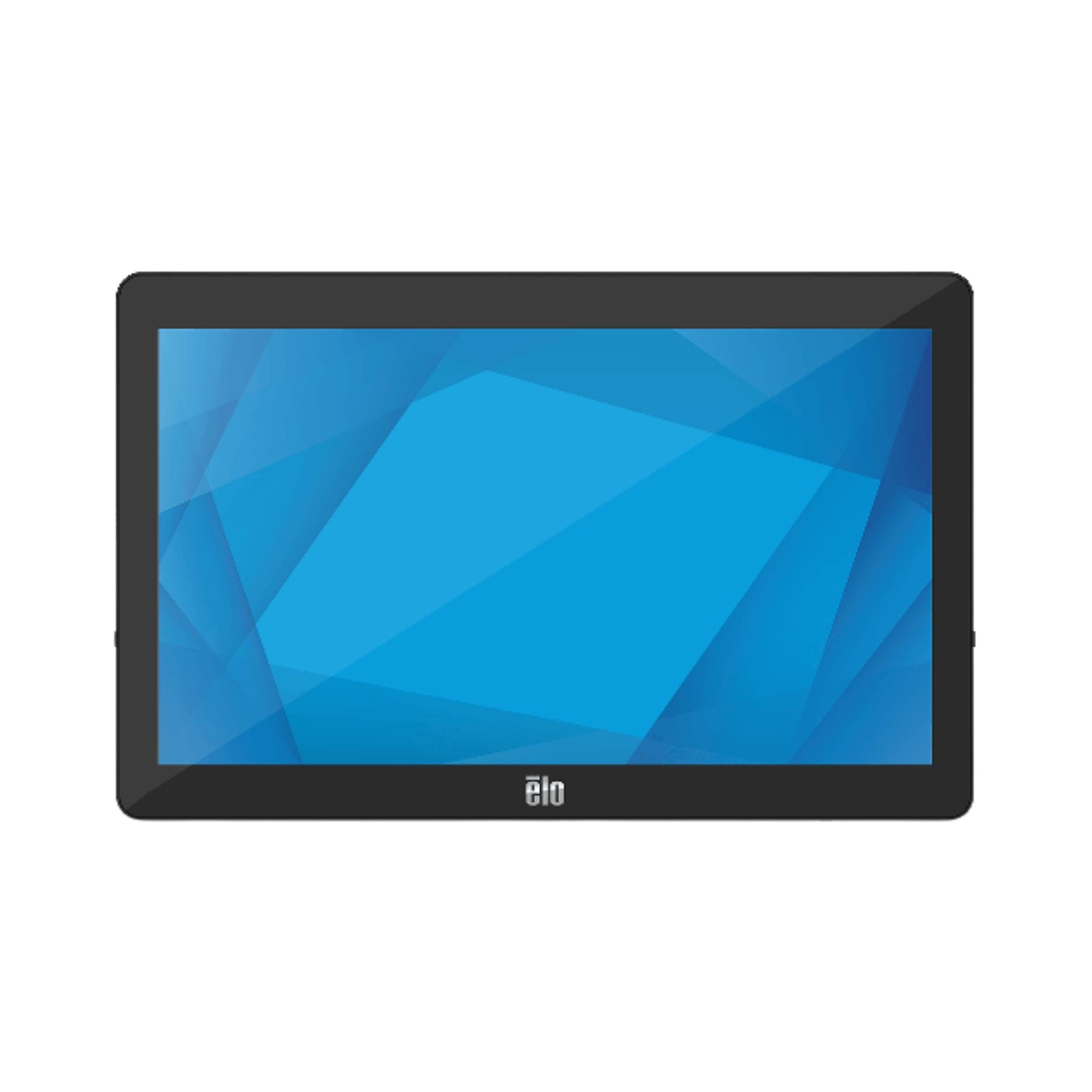

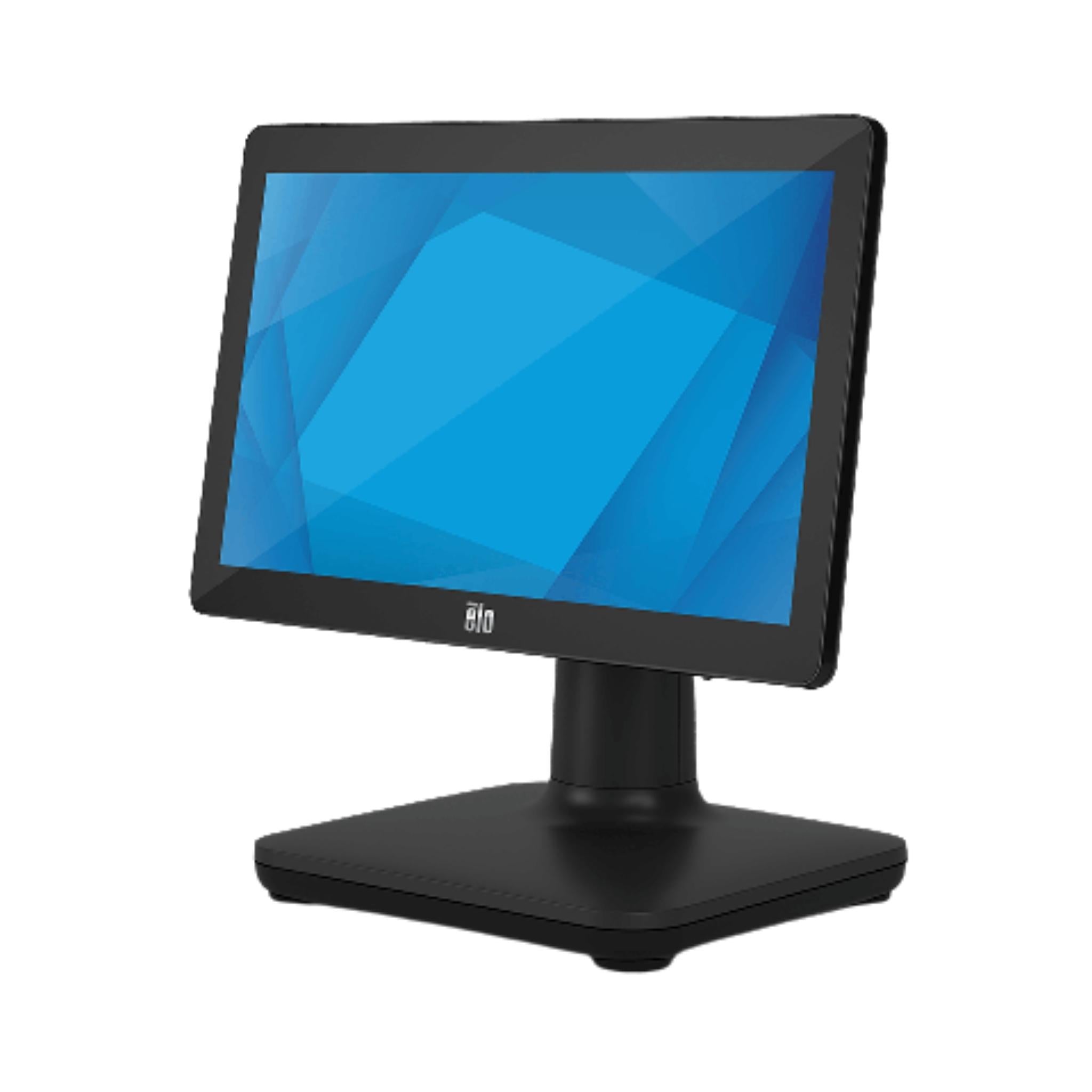

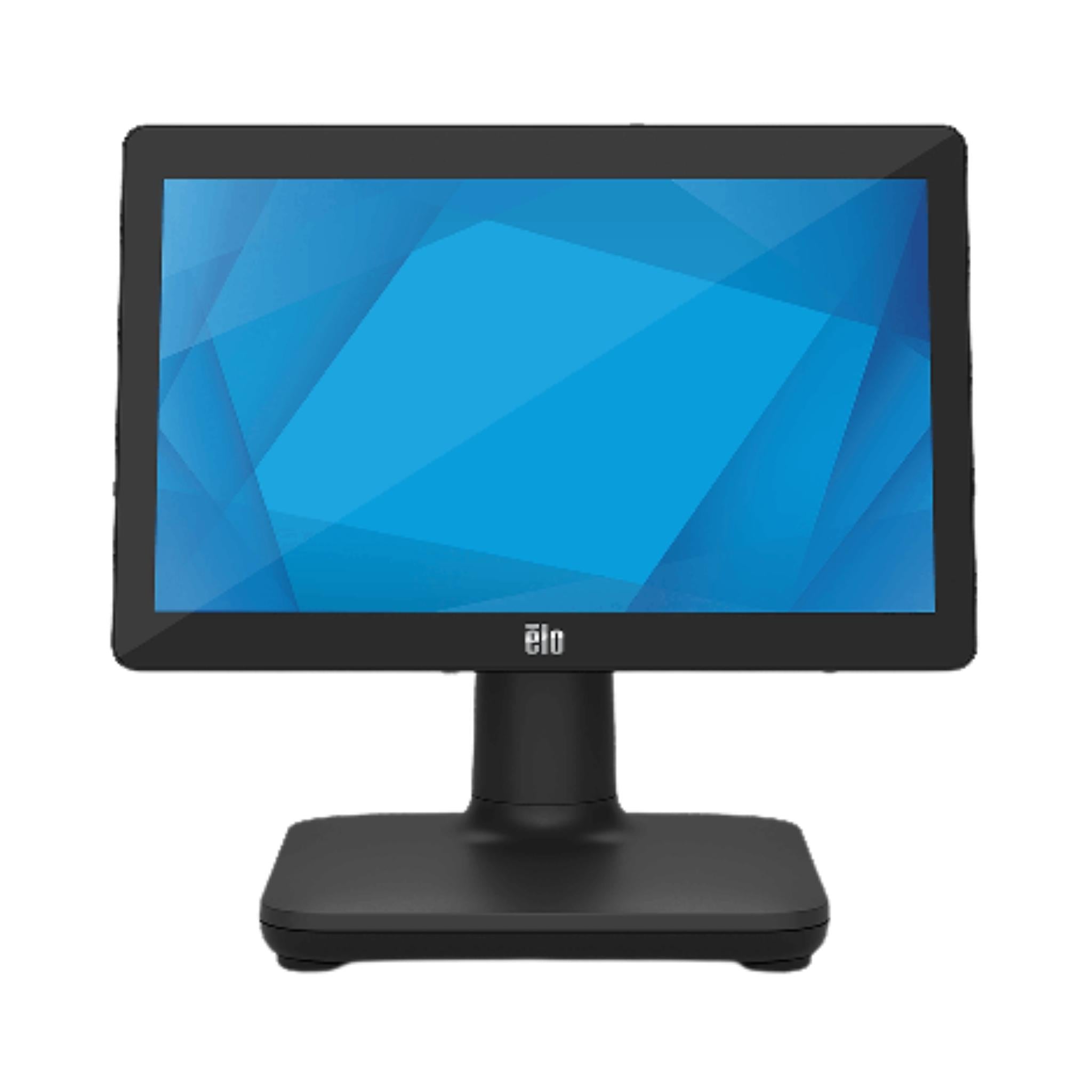

Elo EloPOS™ 15-inch POS Display Monitor
The versatile EloPOS™ System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS™ offers a 15.6-inch touchscreen display, choice of Intel 8th generation processors and an integrated expansion hub to connect the peripherals you need; whether a customer-facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS™ delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.
EloPOS™ utilizes the reliability-tested performance and security of Intel’s 8th Generation processors, integrated Trusted Platform Modules, Intel vPro and the Windows 10 operating system. For added flexibility, EloPOS™ offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, providing businesses with the best solution for their environment.
Part Details:
E441193: Point-of-Sale System, Elo EloPOS™ System, 15-inch Wide, Win 10, Core i3, 4GB RAM, 128GB SSD, Projected Capacitive 10-touch, Zero-Bezel, Anti-glare, Black, I/O Hub Stand, NA Power Cord, EU Power Cord, Power Adapter – 180W, Cable RJ-45 to DB-9, Cable cover locking screw, QIG.
Additional Information:
| Processor | Intel Core™ i3-8100T Processor (6M Smart Cache, 3.10 GHz) |
| USB Ports | 3 x USB 3.0 (1 on display head, 2 on I/O); 2 x USB 2.0 (on I/O); 4 x Micro USB 2.0 (on display head) |
| Powered USB | 1 x 24V on I/O; 2 x 12V on I/O |
| Serial Ports | 2 x RJ45 |
| Cash Drawer Port | 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch) |
| Ethernet Port | 1 x LAN RJ45 (Gigabit) |
| Wireless Connectivity | 802.11 a/b/g/n/ac 2.4GHz and 5GHz; Bluetooth 5.0 |
| Additional Video Out | 1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port) |
| Audio | 2 x 2W internal speakers; 1 x 3.5 mm headset jack |
| Display | 15.6" Diagonal, Active Matrix TFT LED LCD |
| Aspect ratio | 16:9 (standard) |
| Active Display Area (Wx H) | 13.55 x 7.62 inches |
| Native (optimal) Resolution | 1366 x 768 @ 60Hz or 1920 x 1080 @ 60Hz |
| Number of Colors | 262,144 |
| Response Time Total (typical) | 25 msec |
| Contrast Ratio (typical) | 700:1 |
| Power | External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W |
| Dimensions | Without Stand: 15.2 x 9.8 x 2.89 inches
With Stand: 15.2 x 14.54 x 8.71 inches |
| Mounting Options | 75mm VESA mount |
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
