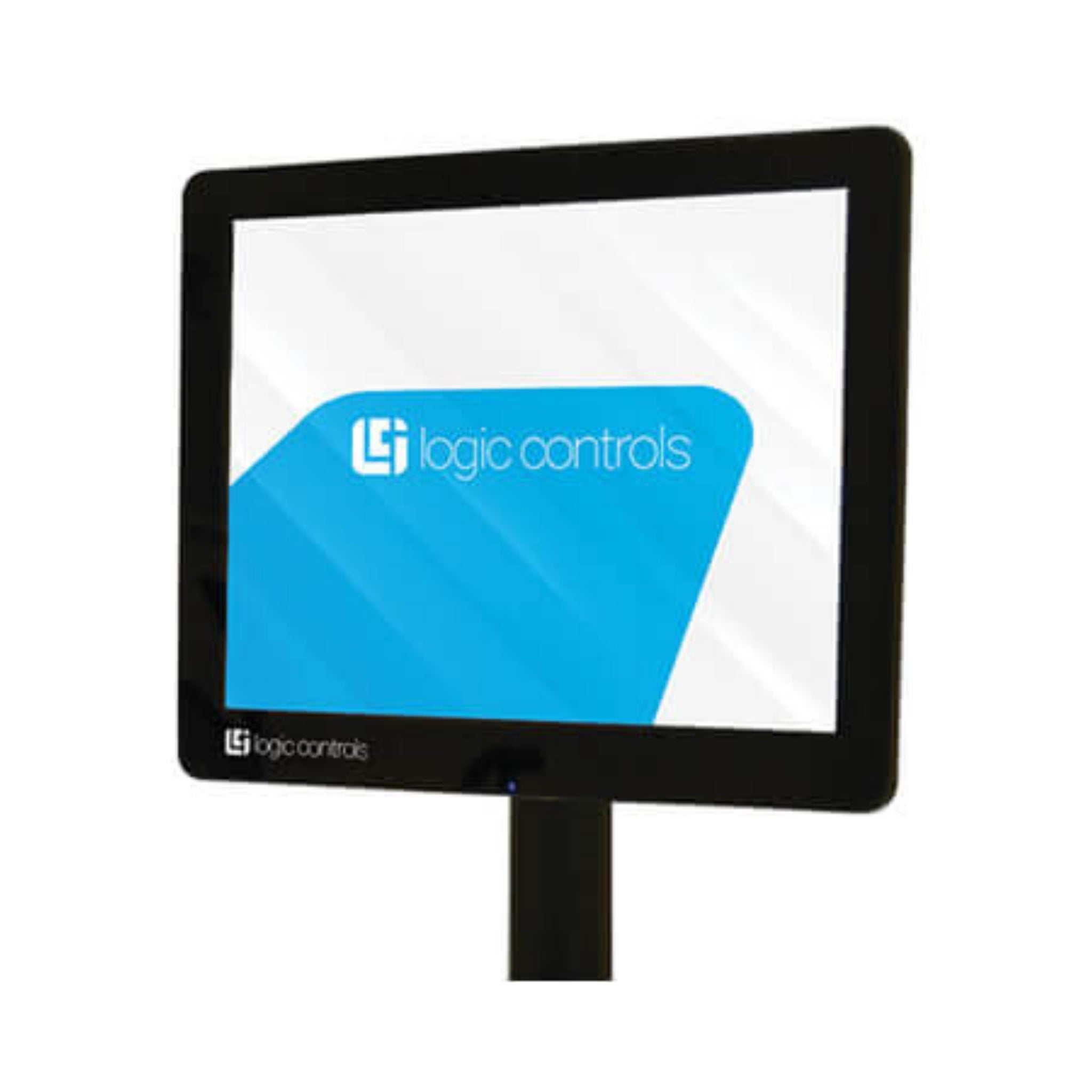

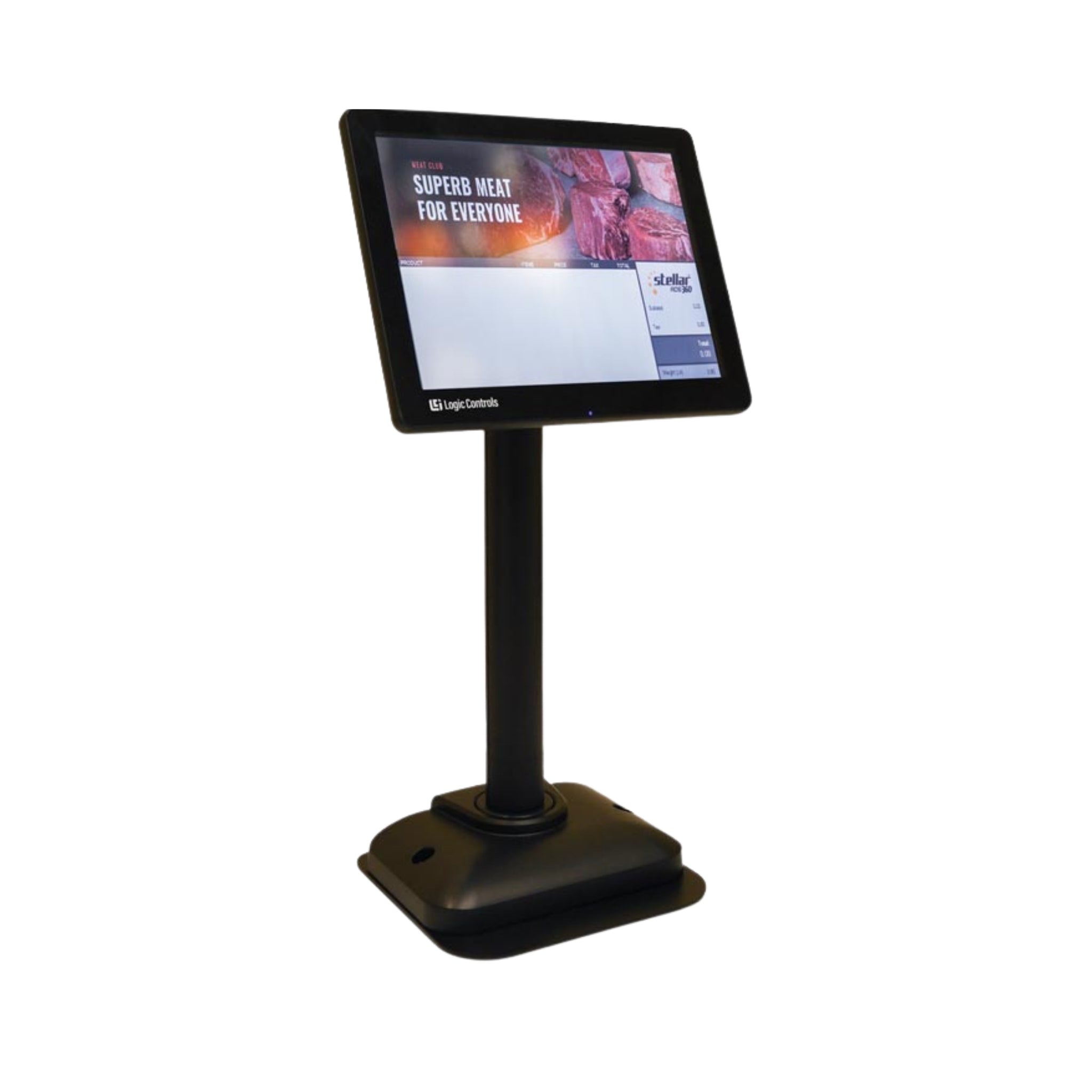

The Logic Controls LV5000 is a 9.7″ TFT LCD customer display with a compact and ecological design. The power consumption is about 2.5W with an LED backlight. Two USB-A plugs of the USB cable are used for delivering power and transaction information at the same time.
The P-Cap touch screen is an option of the LV5000T, and the USB cable is also used for transaction touch screen signals.
Features:
- 8in LCD display with LED backlight
- Optimal display resolution, 800 x 600
- Increases customer engagement at the Point of Sale
- No ventilation hole design
- Lightweight, only 1.5lbs for display (without the pole and base)
- Simple installation
- VESA 75 x 75mm wall mount standard
- True flat panel screen
- Creates great up-selling opportunities
Part Details:
LV5000U: Logic Controls, 9.1" LCD Pole Display, USB Interface, Black
Additional Information:
| Weight | 3lbs |
| Dimensions (WxHxD) | 15.7" x 7.9" x 5.9" |
| Wall Mount | VESA 2.9" x 2.9" |
| Display Size | 8" |
| Active Area | 6.3" x 4.7" |
| Optimal Resolution | 800 x 600 |
| Contrast Ratio | 500:1 |
| Brightness | 230 cd/m² |
| Response Time | 25 ms |
| LCD Viewing Angle | Horizontal: 140°
Vertical: 120° |
| Input Signal Connector | USB Type B |
| Input Frequency | Horizontal: 31.5-60.2 kHz
Vertical: 56.3Hz – 75Hz |
| Power Supply | 500mA/2.5W DC 5V +/- 5% |
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
